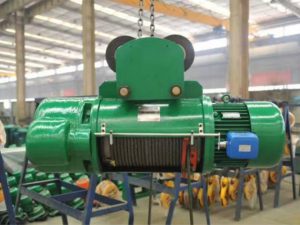

CD1/MD1 wire rope electric hoist is a small-sized lifting equipment, which can be mounted on single beam crane, overhead crane, gantry crane and jib crane. With slight modification, CD1/MD1 wire rope electric hoist can be also used as winch.

Model CD1/MD1 wire rope electric hoist is a small-sized lifting equipment, which can be mounted on single beam crane, overhead crane, gantry crane and jib crane. With slight modification, CD1/MD1 wire rope electric hoist can be also used as winch.

CD1/MD1 wire rope electric hoist is widely used in factories, mines, harbors, warehouses, cargo storage areas and shops. Model CD1 hoist has only one normal speed, which can satisfy normal application. Model MD1 hoist has 2 working speeds: normal and low speed. At low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools.

Installation&Commissioning:

1. The trolley installation should be adjusted according to the width of the I-beam track with washers to ensure that the clearance between the wheel edge and the track is 4-5 mm;
2. Installation, wiring and commissioning of the lifting weight limiter;
3. Installation and commissioning of the limiter (the limit is adjusted upward, the top of the hook and the drum shell are kept about 200 mm space, when the limit is lower, the remaining total safety wire rope on the drum is kept at least 2 laps);
4. Check the refueling amount and oil quality of the reducer;
5. Inspection and adjustment of electronic brake;
6. Check and ensure the wiring inside the control box is firm, ensure the insulation resistance is normal, and ensure the cable wiring from the control box is correct;
7. Check and make sure the wedge and wedge sleeve are installed firmly;
8. Check and make sure the wire rope is normal, to avoid bending, corrosion, broken wire;
9. No-load test run and load test run.

Our company is a professional manufacturer of crane. The company’s senior engineers tailor-made for each customer, scientifically select equipment and do not rework, to ensure that the equipment selected for customers is reasonable and affordable, with stable operation and high efficiency.
