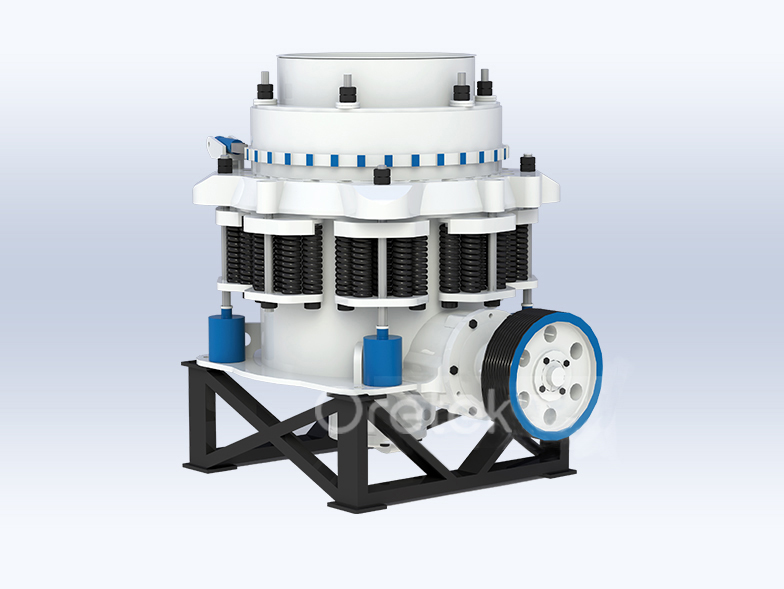

Product Introduction:
CS high efficiency cone crusher has the characteristics of large crushing force, high efficiency, high handling capacity, low operating cost and convenient adjustment. The structure design is reasonable, the particle size of finished product is uniform reducing the circulation load. The CS series cone crushers produced by our company have various cavity types for each model. Users can choose the most suitable cavity type based on the type of material to be crushed, the particle size of the finished product, and other requirements to achieve the best production effect.
Performance advantages:
The main shaft is forged from high-strength alloy steel, and its unique large diameter design is more suitable for heavy equipment.
Pinion gear and bull gears with high strength and high precision are adopted to ensure the reliable operation of equipment.The material strength of them is high, and the machining accuracy is high, thereby ensuring a more stable operation of the equipment.
High quality spring provide overload protection.
Convenient and fast Hydraulic cleaning device. The standard hydraulic cavity cleaning device can remove the foreign body conveniently and quickly, if non-crushable object is delivered into the crusher.
Adoption of grease sealing increases the service life of the host machine.
With simple and reliable structure, easy to maintain. Drive shaft assembly is supported by the bronze shaft sleeve, and the entire assembly can be easily dismounted for maintenance.
Technical parameter
| Type | Model | Type of Cavity | Diameter
of Large End of Crushing Cone(mm) |
CSS min-max(mm) | Max. Feeding Size(mm) | Capacity
(TPH) |
Power
(KW) |
Dimension
(L×H×W) (mm) |
| CS75（3’） | CSC75 | C | 900 | 13~38 | 175 | 59~163 | 75 | 2656×1636×2241 |
| CSB75 | M | 9~22 | 102 | 45~91 | ||||
| CSD75 | F | 3~13 | 41 | 27~90 | ||||
| CS110（3’1/2’) | CSC110 | C | 1100 | 13~38 | 160 | 70~215 | 110 | 2290×1530×2036 |
| CSB110 | M | 10~25 | 115 | 55~135 | ||||
| CSD110 | F | 6~19 | 80 | 47~90 | ||||
| CS130
(4’) |
CSC130 | C | 1200 | 13~38 | 180 | 105~220 | 132 | 2630×1760×2212 |
| CSB130 | M | 10~25 | 130 | 72~170 | ||||
| CSD130 | F | 10~19 | 90 | 70~125 | ||||
| CS160
(4’1/4) |
CSC160 | C | 1300 | 16~51 | 200 | 135~350 | 160 | 2860×2070×2623 |
| CSB160 | M | 13~25 | 150 | 105~180 | ||||
| CSD160 | F | 10~19 | 102 | 80~140 | ||||
| CS200
(5’) |
CSC200 | C | 1400 | 19~51 | 215 | 200~440 | 200 | 2830×2200×2783 |
| CSB200 | M | 16~25 | 160 | 160-230 | ||||
| CSD200 | F | 13~22 | 115 | 150~240 | ||||
| CS220
(5’1/5’) |
CSC220 | C | 1500 | 19~64 | 235 | 230~570 | 220 | 3360×2650×3050 |
| CSB220 | M | 19~38 | 175 | 215~330 | ||||
| CSD220 | F | 13~25 | 130 | 136~281 | ||||
| CS240
(5’) |
CSC240 | C | 1675 | 22~64 | 267 | 330~725 | 250 | 3580×2860×3680 |
| CSB240 | M | 16~25 | 203 | 240~330 | ||||
| CSD240 | F | 10~19 | 140 | 190~300 | ||||
| CS360
(7’) |
CSC360 | C | 2130 | 31~89 | 334 | 789~1270 | 355 | 5110×4270×4350 |
| CSB360 | M | 25~76 | 303 | 608~998 | ||||
| CSD360 | F | 10~29 | 150 | 352~617 |

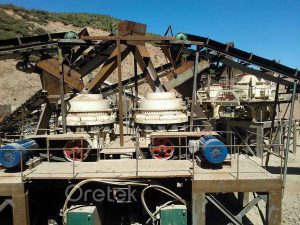

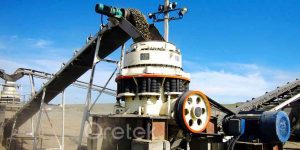

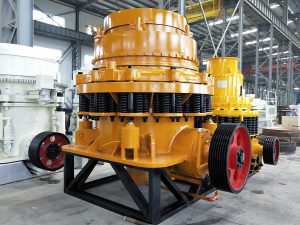

CS high efficiency cone crusher Station factory
Our company is a professional manufacturer of crushing equipment. The company’s senior engineers tailor-made for each customer, scientifically select equipment and do not rework, to ensure that the equipment selected for customers is reasonable and affordable, with stable operation and high efficiency.
Oretek provides you with a full set of mine equipment and services. If you are interested in our company and products, you are welcome to come to the factory to inspect. We will arrange for you to visit the crushing site to intuitively experience the quality of the high quality product!
