GZD Vibrating Feeder

GZD Series Vibrating Feeder

GZD vibration feeder is also called vibration feeder. In the production process of GZD vibration, the block, granular materials can be uniform, timing, and continuously to the material device from the storage warehouse. ; You can adjust the excitement, change and control traffic at any time, and adjust the characteristics of convenient and stability.

Feeding particle size:300-900mm
Production capacity:20-1400T/H
Scope Of Application:Widely used in metallurgy, coal mines, mineral processing, building materials, chemical, abrasive and other industries in crushing, screening combined equipment
Handling Materials:All kinds of non-metallic ore (limestone, granite, basalt, cobblestone, Gobi material, etc.), metal ore (gold, silver, copper, iron and lead), construction waste (waste concrete, brick, sidewalk brick) and other materials

inquiry now

Leave Message

  • 01
    Answer customer questions professionally
  • 02
    Combined with the actual configuration plan
  • 03
    Regular return visit and testing
Get the production plan for free

Product Introduction

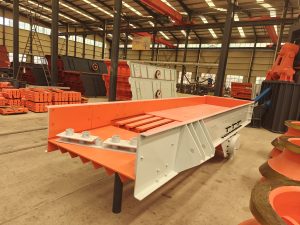

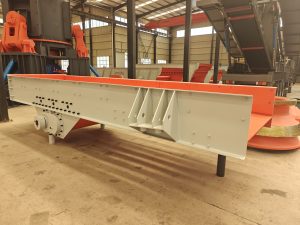

GZD series vibrating feeder produced by our company is a new type of vibrating feeder designed for conveying large materials evenly before crushing and screening medium coarse crusher. vibrating feeder adopts the structure characteristics of double eccentric shaft vibrators to ensure that the equipment can bear the impact of large material falling, and the feeding capacity is large. In the production process, the block and granular materials can be evenly, regularly and continuously given to the receiving device from the storage bin, so as to prevent the receiving device due to uneven feeding and the phenomenon of crash, prolong the service life of the equipment. The feeder can be divided into steel plate structure and grate structure. The feeder of steel plate structure is mostly used in sand and stone production line, and all the materials are uniformly sent into the crushing equipment; Grate structure of the feeder can be coarse screening of the material, so that the system is more economical and reasonable in the preparation, which has been used as an essential equipment in crushing and screening

Performance Advantages

01

Smooth vibrating, reliable operation, long life service.

02

The vibrating force can be adjusted, and the flow can be changed and controlled at any time, which is convenient and stable.

03

Simple structure, reliable operation, easy to adjust, install, light weight, small size and simple maintenance.

04

Using a closed structure to prevent dust pollution.

Technical parameter

Model  Feed Chute

Size

(mm)

Max.Feeding

Size

(mm)

Capacity

(T/H)

Power

 (Kw)

Dimension

(L×H×W)

(mm)

GZD-900×2000 900×2000 300 20-80 5.5 2060×1020×1025
GZD-900×3000 900×3000 350 30-120 7.5 3050×1020×1025
GZD-960×3800 960×3800 450 120-210 11 3880×1640×1115
GZD-1100×4200 1100×4200 500 200-430 15 4280×1820×1220
GZD-1100×4900 1100×4900 580 220-450 15 4980×1820×1220
GZD-1300×4200 1300×4200 650 280-500 18.5 4280×2020×1220
GZD-1300×4900 1300×4900 650 320-550 18.5 4980×2020×1220
GZD-1300×6000 1300×6000 650 450-600 22 6080×2020×1270
GZD-1500×6000 1500×6000 750 500-750 30 6100×2220×1270
GZD-1600×6000 1600×6000 900 650-1400 37 6230×2250×1740

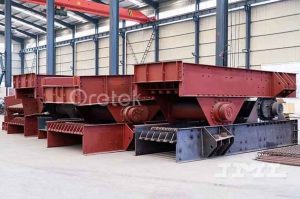

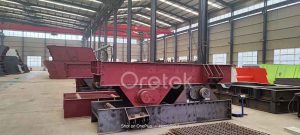

GZD Vibrating Feeder Station factory

Our company is a professional manufacturer of crushing equipment. The company’s senior engineers tailor-made for each customer, scientifically select equipment and do not rework, to ensure that the equipment selected for customers is reasonable and affordable, with stable operation and high efficiency.

Free customized professional and reasonable solution

Oretek provides you with a full set of mine equipment and services. If you are interested in our company and products, you are welcome to come to the factory to inspect. We will arrange for you to visit the crushing site to intuitively experience the quality of the high quality product!
