Product Introduction:
HPS series hydraulic cone crusher is a new type of high-efficiency cone crusher with international advanced level, developed on the basis of absorbing the advanced crushing technology in the world today. This series of cone crusher integrates mechanical, hydraulic, electrical, automation and other technologies, representing the world’s advanced crusher technology. It has the advantages of high crushing efficiency, low production cost, convenient maintenance and adjustment, and excellent particle size of crushing products. It can be widely used in crushing operations such as medium crushing, fine crushing, and ultra-fine crushing, and is suitable for crushing various ores and rocks with hard and medium hardness or above.
HPS hydraulic cone crusher is mainly composed of seven parts: frame part, support sleeve part, adjusting ring part, moving cone part, eccentric sleeve part, transmission part, and safety device part. The motor drives the transmission shaft to rotate. The transmission shaft drives the eccentric sleeve to rotate around the main shaft through a spiral bevel gear, and then the eccentric sleeve drives the moving cone to perform an eccentric circumferential swing, thereby achieving continuous crushing of the ore.
Working principle
HPS hydraulic cone crusher is mainly composed of seven parts: frame part, support sleeve part, adjusting ring part, moving cone part, eccentric sleeve part, transmission part, and safety device part. The motor drives the transmission shaft to rotate. The transmission shaft drives the eccentric sleeve to rotate around the main shaft through a spiral bevel gear, and then the eccentric sleeve drives the moving cone to perform an eccentric circumferential swing, thereby achieving continuous crushing of the ore.
Performance advantages
Optimized design of transmission components, lubrication and sealing structures Based on the structure of fixing the main shaft and rotating the eccentric sleeve around the main shaft, the transmission components and lubrication sealing structure are further optimized. The equipment has strong bearing capacity, and can match with better installed power, with higher efficiency and lower noise.
The best cavity design and adjustable eccentricity distance The perfect combination of crushing stroke, crushing speed and crushing chamber makes the capacity increase by 35%-60% than traditional spring cone crusher in production.
Laminated crushing brings good product shape. Through cavity optimization, the material is crushed using the laminated crushing principle. The crushing occurs between materials, improving the crushing efficiency. The product is cubic in shape, with a high content of fine particles, and slow wear of the lining plate, further reducing the wear of spare parts.
Fully hydraulic control, accurate and reliable. The equipment is hydraulically operated, ranging from adjustment and locking of the discharge port, iron overload protection, to cavity cleaning. The equipment operates more stably and reliably, with more accurate and convenient operation.
Multi cavity type conversion, multiple uses for one machine. Multiple medium and fine crushing cavity types are configured, and only a small number of parts such as the corresponding cavity type liner plate need to be replaced to convert between cavity types. Combining the principle of laminated crushing, it can better meet the requirements of medium and fine crushing processes.crushing better with combining the laminated crushing principle, realizing multiple functions.
Technical Parameters
| Model | Type of chamber | Standard | short head | Power (kw) | Capacity(t/h) | ||
| Feeding size(mm) | Min.output size(mm) | feeding size(mm) | Min.output size(mm) | ||||
| HPS200 | oversize | – | – | – | – | 132-200 | 90-250 |
| coarse | 185 | 19 | 76 | 10 | |||
| middle | 125 | 17 | 54 | 6 | |||
| fine | 95 | 13 | 23 | 6 | |||
| superfine | – | – | 10 | 5 | |||
| HPS300 | oversize | 230 | 25 | – | – | 180-250 | 115-440 |
| coarse | 210 | 20 | 75 | 10 | |||
| middle | 150 | 15 | 50 | 8 | |||
| fine | 105 | 10 | 20 | 6 | |||
| superfine | – | – | 20 | 6 | |||
| HPS400 | oversize | 295 | 30 | – | – | 280-355 | 140-630 |
| coarse | 250 | 25 | 90 | 10 | |||
| middle | 195 | 20 | 50 | 8 | |||
| fine | 110 | 14 | 40 | 6 | |||
| superfine | – | – | 30 | 6 | |||
| HPS500 | oversize | 330 | 30 | – | – | 355-450 | 175-790 |
| coarse | 285 | 25 | 90 | 13 | |||
| middle | 200 | 20 | 55 | 10 | |||
| fine | 133 | 16 | 40 | 8 | |||
| superfine | – | – | 35 | 6 | |||
| HPS800 | oversize | 353 | 32 | – | – | 550-630 | 260-1200 |
| coarse | 297 | 32 | 155 | 13 | |||
| middle | 267 | 25 | 92 | 10 | |||
| fine | 219 | 16 | 33 | 6 | |||
| superfine | – | – | – | – | |||

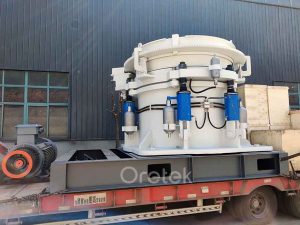

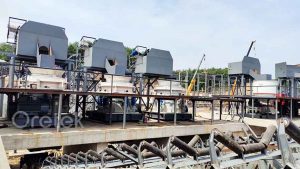

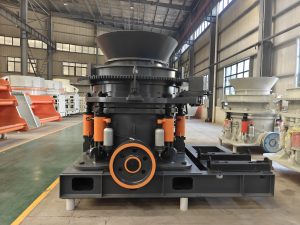

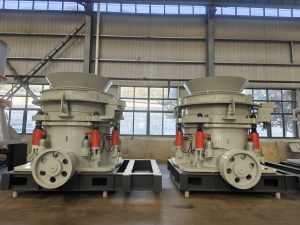

HPS series multi-cylinder hydraulic cone crusher Station factory
Our company is a professional manufacturer of crushing equipment. The company’s senior engineers tailor-made for each customer, scientifically select equipment and do not rework, to ensure that the equipment selected for customers is reasonable and affordable, with stable operation and high efficiency.
Oretek provides you with a full set of mine equipment and services. If you are interested in our company and products, you are welcome to come to the factory to inspect. We will arrange for you to visit the crushing site to intuitively experience the quality of the high quality product!
