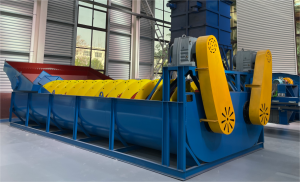

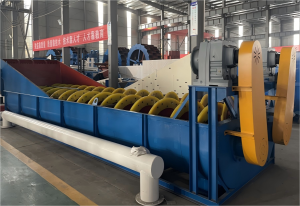

LSX spiral sand washing machine

LSX series spiral sand washing machine

The spiral sand washing machine is still suitable for the stone powder of river sand, mountains and sand, and stone fields, as well as the road building mechanism. Essence

Feeding particle size:≤10
Production capacity:100-350T/H
Scope Of Application:Construction site, sand and stone factory, hydro power station, metallurgy, building materials, and other industries washing
Handling Materials:Limestone, river stone, blue stone, pebble, weathered sand, basalt, granite, quartz, diabase etc

inquiry now

Leave Message

  • 01
    Answer customer questions professionally
  • 02
    Combined with the actual configuration plan
  • 03
    Regular return visit and testing
Get the production plan for free

Product Introduction:

The LSX spiral sand washing machine developed by our company can clean and separate the stone powder and soil in the sand. Its novel sealing structure and reliable transmission device ensure the effect of cleaning and dewatering. It is a high-efficiency sand washing equipment used in conjunction with the sand making machine. LSX series spiral sand washing machines have two types: single screw and double screw. The equipment is characterized by large processing capacity, low power consumption, high cleaning cleanliness, less fine sand loss during sand washing, and no screen, reducing the loss of vulnerable parts. It is an ideal product for upgrading the domestic sand washing industry.

Performance advantages


Big capacity, the working principle of spiral sand washer isn’t collect by wheel bucket, so the handling capacity has been greatly improved


The spiral sand washing machine does not need to add the screen, thus reducing the consumption of the screen and the use cost.


The cleaning effect is better. Compared to the wheel type sand washing machine, the spiral type sand washing machine takes more time for the sand to be turned over for cleaning, resulting in better cleaning effect.

Technical parameter

Model No. Of spiral diameter of



Flume length


feeding size















LSX-920 1 920 7585 ≤10 100 21 11 10-80 6.2 8420×2180×3960
2LSX-920 2 920 7585 ≤10 200 21 11×2 20-160 11.5 8420×3970×3960
LSX-1120 1 1120 9750 ≤10 175 17 18.5 20-150 10.9 10770×3950×4860
2LSX-1120 2 1120 9750 ≤10 350 17 18.5×2 40-300 17.8 10770×5260×4860

LSX spiral sand washing machine Station factory

Our company is a professional manufacturer of crushing equipment. The company’s senior engineers tailor-made for each customer, scientifically select equipment and do not rework, to ensure that the equipment selected for customers is reasonable and affordable, with stable operation and high efficiency.

Free customized professional and reasonable solution

Oretek provides you with a full set of mine equipment and services. If you are interested in our company and products, you are welcome to come to the factory to inspect. We will arrange for you to visit the crushing site to intuitively experience the quality of the high quality product!
