It is widely used in the glass fiber industry, and the large -yield high -fine powder grinding of leaf stone powder; the production of large -yield powder for coal gangue powder in the coal industry; the production of large -yield powder of various chemical raw materials in the chemical industry.
inquiry now
Leave Message
Product Introduction

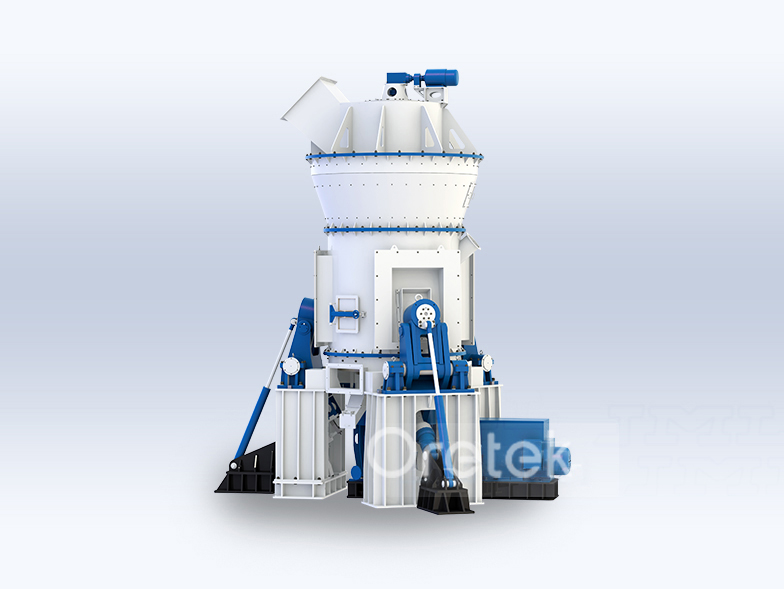

SRM series vertical mill is new and efficient vertical grinding machines developed and produced on the basis of introduction of mature vertical grinding technologies from Germany Loesche, and through continuous improvement and technological innovation by our company’s research and development team. Vertical Mill has features of low investment and operation costs, high product quality, and easy operation and maintenance. It has the advantages of energy saving, environmental protection, and pollution-free. Widely used in industries such as metallurgy, electric power, cement coal ash, industrial waste gas desulfurization, and comprehensive utilization of waste residue.
Performance Advantages
SRM Vertical Mill integrates grinding, drying, classifying, and product conveying, with a simple structure and compact layout, and can be installed outdoors, greatly reducing investment costs.
Compared to traditional vertical mills, the SRM vertical mill transmission gearbox adopts a new structure, which makes the machine have greater bearing capacity.
The hydraulic control system is adopted to automatically adjust the pressure as the material changes, so as to maintain a stable operating state of the mill. Reduce energy consumption and extend the service life of roller sleeves and lining plates.
The vertical mill adopts a thin oil lubrication station and an automatic protection system to ensure safe and reliable operation.
According to the requirements of different materials and fineness, the equipment selects powder classifier with different structures. The powder classifier adopts frequency conversion speed regulation, which makes the particle size distribution more uniform and the fineness easier to adjust.
Equipped with electric control system. Realize PLC, central control and DCS control, to meet customer needs.
Technical parameter
| Model | Intermediate
diameter of grinding table (mm) |
Max. Feeding size
(mm) |
Product Size | Inlet Air
Temperature (℃) |
Outlet Air
Temperature (℃) |
Best
Input Moisture |
Input
Moisture for drying |
Product
Moisture |
Capacity
(t/h) |
Mill Power
(kw) |
|
| μm | Mesh | ||||||||||
| SRM1300 | 1300 | ≤30 | 212-45 | 70-325 | ≤350 | 70-95 | ≤4% | 4%-15% | ≤1% | 10-35 | 132-200 |
| SRM1500 | 1500 | ≤40 | 212-45 | 70-325 | ≤350 | 70-95 | ≤4% | 4%-15% | ≤1% | 13-48 | 220-285 |
| SRM1700 | 1700 | ≤50 | 212-45 | 70-325 | ≤350 | 70-95 | ≤4% | 4%-15% | ≤1% | 18-68 | 315-400 |
| SRM1900 | 1900 | ≤60 | 212-45 | 70-325 | ≤350 | 70-95 | ≤4% | 4%-15% | ≤1% | 23-85 | 450-600 |
| SRM2200 | 2200 | ≤70 | 212-45 | 70-325 | ≤350 | 70-95 | ≤4% | 4%-15% | ≤1% | 36-135 | 600-750 |
Technical parameter
| Model | Intermediate
diameter of grinding table (mm) |
Max. Feeding
size(mm) |
Raw Coal
(HGI) |
Coal
Powder Fineness (R0.08) |
Inlet Air
Temperature (℃) |
Outlet Air
Temperature (℃) |
Best
Input Moisture |
Input
Moisture for drying |
Product
Moisture |
Capacity
(t/h) |
Mill Power
(kw) |
| SRM1300M | 1300 | ≤30 | ＞5 | 5-20% | ≤350 | 70-95 | ≤4% | 4%-15% | ≤1% | 10-18 | 132-200 |
| SRM1500M | 1500 | ≤40 | ＞55 | 5-20% | ≤350 | 70-95 | ≤4% | 4%-15% | ≤1% | 13-25 | 220-285 |
| SRM1700M | 1700 | ≤50 | ＞55 | 5-20% | ≤350 | 70-95 | ≤4% | 4%-15% | ≤1% | 18-32 | 315-400 |
| SRM1900M | 1900 | ≤60 | ＞55 | 5-20% | ≤350 | 70-95 | ≤4% | 4%-15% | ≤1% | 23-40 | 450-600 |
| SRM2200M | 2200 | ≤70 | ＞55 | 5-20% | ≤350 | 70-95 | ≤4% | 4%-15% | ≤1% | 36-54 | 600-750 |

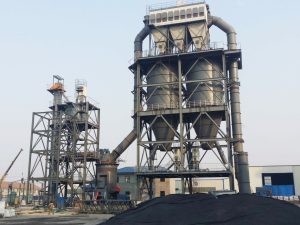

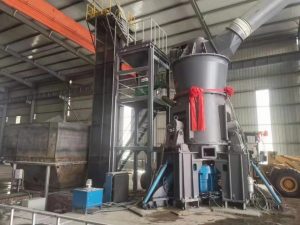

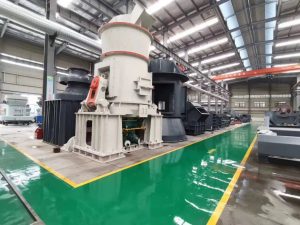

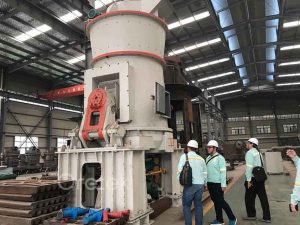

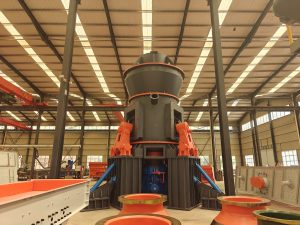

SRM Vertical Mill Station factory
Our company is a professional manufacturer of crushing equipment. The company’s senior engineers tailor-made for each customer, scientifically select equipment and do not rework, to ensure that the equipment selected for customers is reasonable and affordable, with stable operation and high efficiency.
Oretek provides you with a full set of mine equipment and services. If you are interested in our company and products, you are welcome to come to the factory to inspect. We will arrange for you to visit the crushing site to intuitively experience the quality of the high quality product!
