Crawler Mobile Jaw crusher

Crawler Type Mobile Jaw crusher station

Crawler Type Mobile Impact crusher station is suitable for medium, soft and hard natural stone and construction waste.

Feeding particle size:<750mm
Production capacity:90-650T/H
Scope Of Application:Mining, smelting, building materials, roads, railways, water conservancy and chemical industries
Handling Materials:Limestone, granite, marble, basalt, iron ore, river pebbles, shale, blue stone, coal, cobblestone, construction waste, etc

inquiry now

Leave Message

  • 01
    Answer customer questions professionally
  • 02
    Combined with the actual configuration plan
  • 03
    Regular return visit and testing
Get the production plan for free

Product Introduction

Crawler Type Mobile Jaw crusher station is equipped with a high-performance jaw crusher and a vehicle-mounted feeder with high strength, short length and light weight; it is designed of strong mobility and adaptability to reduces material transportation costs. It is made for various mobile crushing environments, and provide customers with truly simple, efficient and low-cost crushing equipment. It is mainly used in metallurgy, chemical industry, building materials, infrastructure construction and other crushing operations that often need to be moved, especially in roads, railways, hydro power projects and other stone processing fields. Users can use a variety of crushers according to the type, size and product requirements of different materials. Machines configured to handle raw materials.



Performance advantages


Crawler mobile crushing station products have light weight, small volume, especially suitable for narrow site work;


The high-performance jaw crusher specially designed for crawler mobile stations is adopted, which is highly independently developed and perfectly adapted to various production conditions.


Integrating material receiving, crushing, conveying and other processes, through the optimization of the process flow, it has various crushing performances such as ore crushing, sand and gravel aggregate production, open-pit mining, etc. It can be combined with different models to form a powerful crushing production line to meet the crushing requirement of client.


The whole machine adopts crawler all-wheel drive, which can realize in-situ steering, and is equipped with quick change device as standard, with perfect safety protection function, especially suitable for areas with narrow sites and complicated working conditions;


Fuel saving, fuel saving rate up to 25%


Attached with power unit, It is able to move and producing without external power supply.


It can work uphill to meet the crushing requirements of mining, hydro-power station, coal mine and other projects.


Technical Parameters

Project JMC106 JMC116 MC-F250S MC-F350S MC-H300S MC-H400S
Capacity(t/h) 140-420 170-600 150-300 180-400 100-380 150-450
Crusher model C106 C116 F250S F350S HP300 HP400
Max Feeding Size (mm) 650 680 500 600 180 250
Discharge port adjustment range (mm) 70-200 80-200 20-150 20-150 10-45 10-45
Main belt model 1000×10000 1200×12000 1000×9900 1200×11000 1000×10000 1200×11000
Main equipment power(KW) 110 132 250 280 220 315
Whole machine power(KW) 200 250 400 500 350 500
Transport size(L*W*H)


14900×3000×3600 15200×3200×3700 19000×3600×3800 17000×3200×3800 19000×3900×3800 19500×3900×3800
Weight(T) 45 58 60 65 58 65

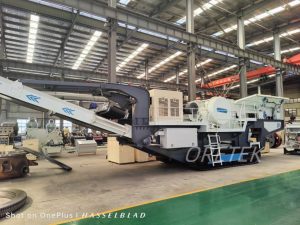

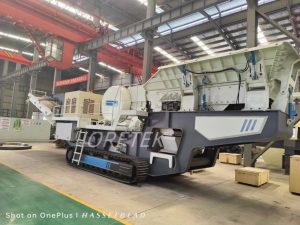

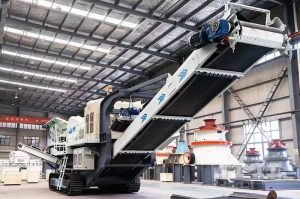

Crawler Type Mobile Jaw crusher Station factory

Our company is a professional manufacturer of crushing equipment. The company’s senior engineers tailor-made for each customer, scientifically select equipment and do not rework, to ensure that the equipment selected for customers is reasonable and affordable, with stable operation and high efficiency.

Free customized professional and reasonable solution

Oretek provides you with a full set of mine equipment and services. If you are interested in our company and products, you are welcome to come to the factory to inspect. We will arrange for you to visit the crushing site to intuitively experience the quality of the high quality product!
