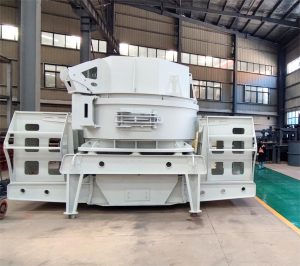

VSI Sand Making Machine

VSI Series Crusher Sand Making Machine

The VSI sand making machine is 50%energy -saving than the traditional sand making machine. The finished sand grain type is better and the quality is high. The particle size below 5mm can reach more than 80%. It is very popular in the fields of artificial mechanism sand, cement, construction, and chemical industry.

Feeding particle size:<40mm
Production capacity:236-720T/H
Scope Of Application:sand making or shaping for dry mortar, building materials, machine-made sand and various metallurgical slags
Handling Materials:Limestone, river stone, mountain stone, blue stone, pebble, weathered sand, basalt, granite, quartz, diabase,etc

inquiry now

Leave Message

  • 01
    Answer customer questions professionally
  • 02
    Combined with the actual configuration plan
  • 03
    Regular return visit and testing
Get the production plan for free

Product Introduction

The VSI new sand making machine is a new generation of sand -making machines with a newly developed international level in our company. Over the years of technological accumulation, modern processing equipment precision production guarantees the status of VSI new sand making machines in the same industry. Excellent cost -effectiveness and reliability are unique in similar products. The VSI new sand making machine is a new generation of new -type sand -making special equipment that combines the development of German authoritative experts in combination with China’s working conditions. The improved design is also the third -generation high -performance sand making equipment with the world -class level in China.

Performance advantages


The optimized deep chamber rotor improves the passing rate for 30% Compared with the traditional equipment with the same motor power, it increases 30% output. And stable operation.


Low consumption of wearing parts: excellent designed impact angle in crushing chamber reduces frication between materials and it, consequently reduces 30% operating cost.excellent designed impact angle in crushing chamber reduces frication between materials and wearing parts, and maximize the utilize of material. Consequently reduces 30% operating cost.


Fine shape of final product: cubic and good shape,proper gradation, fineness modulus can be adjusted, especially suitable for making artificial sand and stone reshaping


Hydraulic device,easy to maintain hydraulic cover opening device is more convenient and easier to replace the wearing parts in crushing cavity. Decreases the downtime and saves time and energy.


Simple installation and easy operation: light in weight and diverse means to install. It is very easy to install, maintain, use and repair.


One machine for multi-purpose, flexible application: The flexible conversion between "stone-hit-stone" and "stone-hit-iron" crushing mode is applied. Multi-purpose designed sand making machine is able to meet different requirements in sanding making and aggregate shaping.

Technical parameters

Model VSI-7611 VSI-8518 VSI-9526 VSI-1140 VSI-1145
Capacity(t/h) Center and ring feeding 120-180 200-260 300-380 450-520 500-640
Center feeding 60-90 100-130 150-190 225-260 250-360

.feeding size(mm)

Soft material <35 <40 <45 <50 <50
Hard material <30 <35 <40 <45 <45
Rotation speed(r/min) 1700-1890 1520-1690 1360-1510 1180-1310 1100-1310
Power for double motor(kw) 110-150 180-220 264-320 400-440 400-440
 Power source 380V;50Hz
Vibrating sensor  Inspect scope:0.1-20mm/s adjusted continuously
 Lubrication hydraulic pressure station Power for oil pump(kw) 2×0.31
Safety  To make sure the supply of the oil with double oil pump;

Stop working without oil or hydraulic pressure; Temperature falls when the water cools;

Start the motor by heating it in winter.

dimension(mm) 820×520×1270
Power for oil box heater(kw) 2

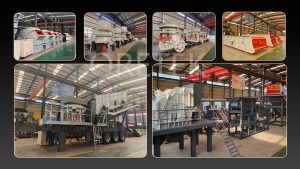

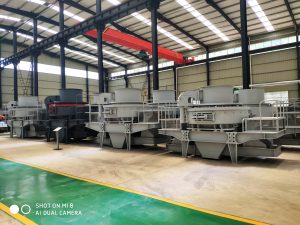

VSI Sand Making Machine Station factory

Our company is a professional manufacturer of crushing equipment. The company’s senior engineers tailor-made for each customer, scientifically select equipment and do not rework, to ensure that the equipment selected for customers is reasonable and affordable, with stable operation and high efficiency.

Free customized professional and reasonable solution

Oretek provides you with a full set of mine equipment and services. If you are interested in our company and products, you are welcome to come to the factory to inspect. We will arrange for you to visit the crushing site to intuitively experience the quality of the high quality product!
