Crawler Mobile cone crusher

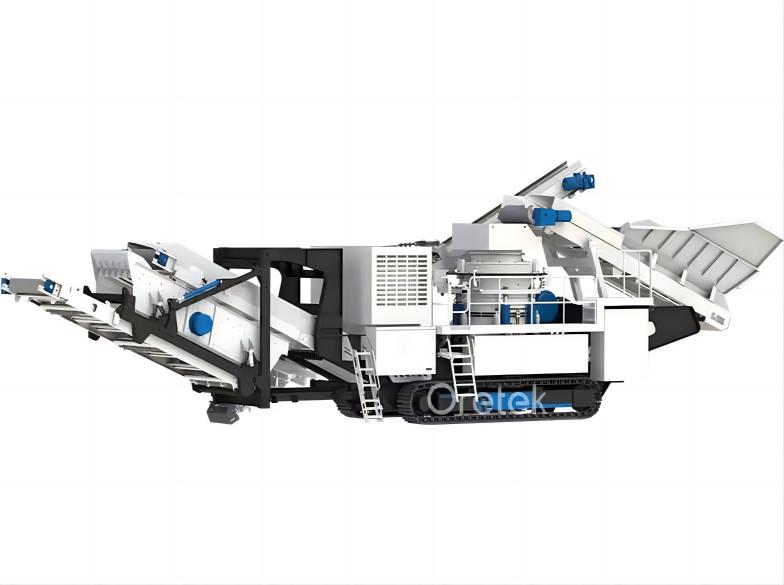

Crawler type mobile cone crusher station

Crawler type mobile cone crusher station is suitable for crushing and processing of natural stones and minerals with medium high hardness and high abrasion

Feeding particle size:<200mm
Production capacity:50-430T/H
Scope Of Application:Widely used in road and bridge construction, urban construction, metallurgy, energy and other parts of the crushing, screening and so on
Handling Materials:Limestone, granite, marble, basalt, iron ore, river pebbles, shale, blue stone, coal, cobblestone, construction waste, etc

inquiry now

Leave Message

  • 01
    Answer customer questions professionally
  • 02
    Combined with the actual configuration plan
  • 03
    Regular return visit and testing
Get the production plan for free

Product Introduction

Crawler type mobile cone crusher station is suitable for crushing and processing of natural stones and minerals with medium high hardness and high abrasion. This equipment integrates mechanical, hydraulic, electrical, automation and other technologies. It has many advantages, such as high crushing efficiency, low production cost, convenient maintenance and adjustment, and excellent particle size of crushed products. It can show the characteristics of large energy production, good particle shape, low energy consumption, etc. in the secondary or tertiary crushing processing application of medium high hardness, medium high abrasive natural stone materials, such as granite, basalt, diabase, etc. This series of equipment is not afraid of narrow terrain and harsh environment, and is the mainstream product in the construction industry and metal mining industry today.

Performance advantages


The ship shaped steel frame structure is adopted, and the chassis design is compact, effectively shortening the transportation length.


The high-quality Cone crusher specially designed for mobile station is highly independently researched and developed, which perfectly fits the production conditions.


The cone crusher has high production capacity, low failure rate, and a variety of different cavity types are available to meet the production needs of different product particle sizes.


The cone crusher is capable of full hydraulic control, which is convenient, fast, accurate and reliable. It is hydraulically operated from cavity cleaning, overload protection to adjustment and locking of the discharge port.


The hydraulic system of the mobile station is fully optimized and upgraded. It brings more accurate adjustment control, more sensitive automatic protection response, reliable operation and convenient maintenance.

Technical Parameters

Project JMC106 JMC116 MC-F250S MC-F350S MC-H300S MC-H400S
Capacity(t/h) 140-420 170-600 150-300 180-400 100-380 150-450
Crusher model C106 C116 F250S F350S HP300 HP400
Max Feeding Size (mm) 650 680 500 600 180 250
Discharge port adjustment range (mm) 70-200 80-200 20-150 20-150 10-45 10-45
Main belt model 1000×10000 1200×12000 1000×9900 1200×11000 1000×10000 1200×11000
Main equipment power(KW) 110 132 250 280 220 315
Whole machine power(KW) 200 250 400 500 350 500
Transport size(L*W*H)


14900×3000×3600 15200×3200×3700 19000×3600×3800 17000×3200×3800 19000×3900×3800 19500×3900×3800
Weight(T) 45 58 60 65 58 65

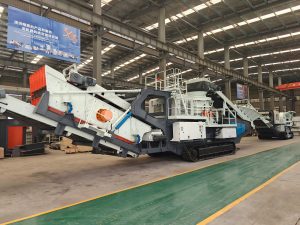

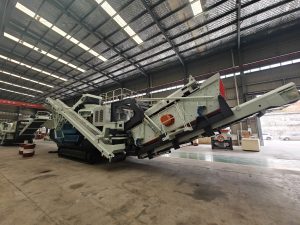

Crawler type mobile cone crusher Station factory

Our company is a professional manufacturer of crushing equipment. The company’s senior engineers tailor-made for each customer, scientifically select equipment and do not rework, to ensure that the equipment selected for customers is reasonable and affordable, with stable operation and high efficiency.

Free customized professional and reasonable solution

Oretek provides you with a full set of mine equipment and services. If you are interested in our company and products, you are welcome to come to the factory to inspect. We will arrange for you to visit the crushing site to intuitively experience the quality of the high quality product!
