It is widely used in the construction site, gravel field, glass factory, water conservancy and hydropower, concrete mixing station, and construction sites.
inquiry now
Leave Message
Product Introduction

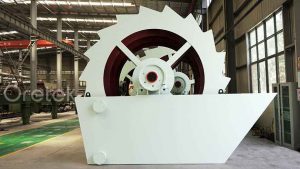

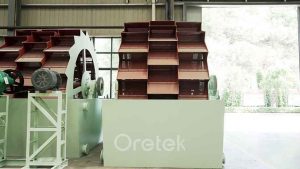

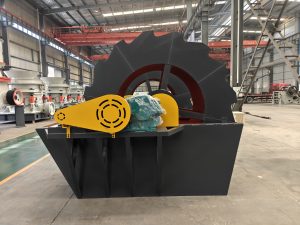

XSD series sand washing machine with its wheel-like structure is the necessary equipment used with sand making machine. It can wash stone powder and residual away from the mostly, so as to improve sand quality . XSD sand washing machine adopts advanced technology, takes the sand industry’s practical condition into consideration, has the features like high clean ratio,technical structure, high capacity, low power cost and less loss of fine sand. Especially the well-designed structure makes transmission part isolated from water and sand, so the malfunction is reduced enormously. So this sand washing machine is the best choice for product’s updating and upgrading
Performance advantages
The sand washing machine has simple structure; The impeller transmission device is separated from water and sand. This protects the bearing from water leakage, sand flow and other damage caused by pollutants.
Advanced technology brings little loss of fine sand during washing process. The grade and fineness of washed sand meets the construction standard.
There are no wearing parts except sieves.
Long service life and little maintenance.
Technical parameter
|
Model |
XSD-2610 |
XSD-2816 |
XSD-3016 |
XSD-3620 |
|
wheel size (mm) |
2600×1000 |
2800×1600 |
3000×1600 |
3600×2000 |
|
Wheel speed(r/min) |
1.178 |
1.177 |
1.179 | 1.15 |
| Capacity(t/h) | 20-50 | 30-60 | 50-120 | 80-160 |
| Max.feeding size(mm) | ≤10 | ≤10 | ≤10 | ≤10 |
| power(kw) | 7.5 | 7.5-11 | 11-15 | 20-30 |
| model of gear box | ZQ400-50-I-Z | ZQ650-50-I-Z | ZQ650-50-I-Z | ZQ650-50-I-Z |
| Dimension(mm) | 3600×2116×2690 | 3964×3015×2980 | 3964×3015×3080 |
4624×3443×3680 |

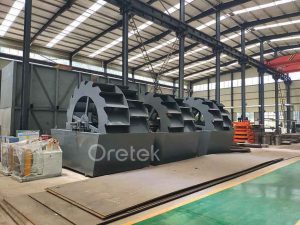

XSD Sand Washing Machine Station factory
Our company is a professional manufacturer of crushing equipment. The company’s senior engineers tailor-made for each customer, scientifically select equipment and do not rework, to ensure that the equipment selected for customers is reasonable and affordable, with stable operation and high efficiency.
Oretek provides you with a full set of mine equipment and services. If you are interested in our company and products, you are welcome to come to the factory to inspect. We will arrange for you to visit the crushing site to intuitively experience the quality of the high quality product!
