Round vibration sieve is a multi -layer, new vibration screen. This vibration screen is widely used in product screening or classification of products in mines, building materials, transportation, energy, chemical industry and other industries.
inquiry now
Leave Message
Product Introduction

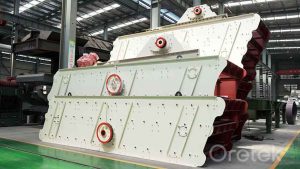

YZS circle vibrating screen is a new type of high efficient screening equipment. Because of its trajectory approximate to round, it is called circle vibrating screen. YZS circle vibrating screen is highly praised by customers from all trades because its consumption energy is up to national standard which is of advanced level at home and abroad. YZS Circular Vibrating Screen adopts eccentric shaft vibration exciter and eccentric block to adjust amplitude.
The rivet connected frame structure increase the service life and spring damping device decrease the impact force toward the base. It is a multi-level and high efficiency vibrating screen. This kind of screen is of technical structure,strong vibrating force, low operating noise, steady frame, convenient maintenance and safe operation.
Performance Advantages
With new structure and advanced technology, It adopts eccentric block exciter to provide strong vibrating force.
It adopts special design of small amplitude, high frequency and large inclination. Thus it bring high screening efficiency, high capacity, long working life, low power consumption and noise.
It adopts punching sieve and has long life span.Replace different mesh size and can get different size of products.
It adopts flexible transmission and soft connection to ensure stable operation.
Oil lubrication assures the bearing’s lubrication is at its best, which have the bearing over-heat protective function and make the main bearing keep in a constant temperature and have a long performance life.
Technical parameter
| Model | Screen Size
(mm） |
Deck | Max. Feeding Size
（mm） |
Capacity
（t/h） |
Power
（kw） |
Vibrating Frequency
（r/min） |
Double Amplitude
（mm） |
| 2YZS1237 | 3700X1200 | 2 | 300 | 25-120 | 11 | 890 | 5-9 |
| 3YZS1237 | 3700X1200 | 3 | 300 | 25-120 | 11 | 890 | 5-9 |
| 2YZS-1548 | 4800×1500 | 2 | 300 | 30-275 | 15 | 890 | 5-9 |
| 3YZS-1548 | 4800×1500 | 3 | 300 | 30-275 | 15 | 890 | 5-9 |
| 4YZS-1548 | 4800×1500 | 4 | 300 | 30-275 | 18.5 | 890 | 5-9 |
| 2YZS-1848 | 4800×1800 | 2 | 350 | 56-330 | 15 | 890 | 5-9 |
| 3YZS-1848 | 4800×1800 | 3 | 350 | 56-330 | 18.5 | 890 | 5-9 |
| 4YZS-1848 | 4800×1800 | 4 | 350 | 56-330 | 22 | 890 | 5-9 |
| 2YZS-1860 | 6000×1800 | 2 | 350 | 65-586 | 18.5 | 890 | 5-9 |
| 3YZS-1860 | 6000×1800 | 3 | 350 | 65-586 | 22 | 890 | 5-9 |
| 4YZS-1860 | 6000×1800 | 4 | 350 | 85-586 | 30 | 890 | 5-9 |
| 2YZS-2160 | 6000×2100 | 2 | 350 | 81-720 | 22 | 890 | 5-9 |
| 3YZS-2160 | 6000×2100 | 3 | 350 | 100-720 | 30 | 890 | 5-9 |
| 4YZS-2160 | 6000×2100 | 4 | 350 | 100-720 | 37 | 890 | 5-9 |
| 2YZS-2460 | 6000×2400 | 2 | 350 | 150-850 | 37 | 890 | 5-9 |
| 3YZS-2460 | 6000×2400 | 3 | 350 | 150-850 | 37 | 890 | 5-9 |
| 2YZS-2870 | 7000×2800 | 2 | 350 | 120-680 | 22*2 | 750 | 7-11 |
| 3YZS-2870 | 7000×2800 | 3 | 350 | 180-720 | 22*2 | 750 | 7-11 |
| 2YZS3075 | 7500X3000 | 2 | 400 | 200-1200 | 22*2 | 800 | 7-11 |
| 3YZS3075 | 7500X3000 | 3 | 400 | 200-1200 | 30*2 | 800 | 7-11 |
| 2YZS3680 | 8000X3600 | 2 | 400 | 225-2250 | 30*2 | 850 | 7-11 |
| 2YZS3680 | 7500X3680 | 3 | 400 | 225-2250 | 37*2 | 850 | 7-11 |

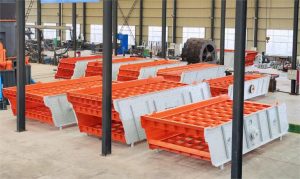

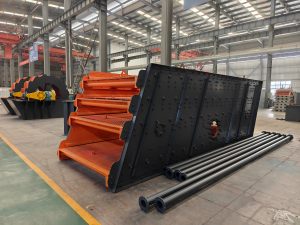

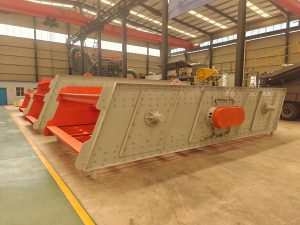

YZS Vibrating Screen Station factory
Our company is a professional manufacturer of crushing equipment. The company’s senior engineers tailor-made for each customer, scientifically select equipment and do not rework, to ensure that the equipment selected for customers is reasonable and affordable, with stable operation and high efficiency.
Oretek provides you with a full set of mine equipment and services. If you are interested in our company and products, you are welcome to come to the factory to inspect. We will arrange for you to visit the crushing site to intuitively experience the quality of the high quality product!
