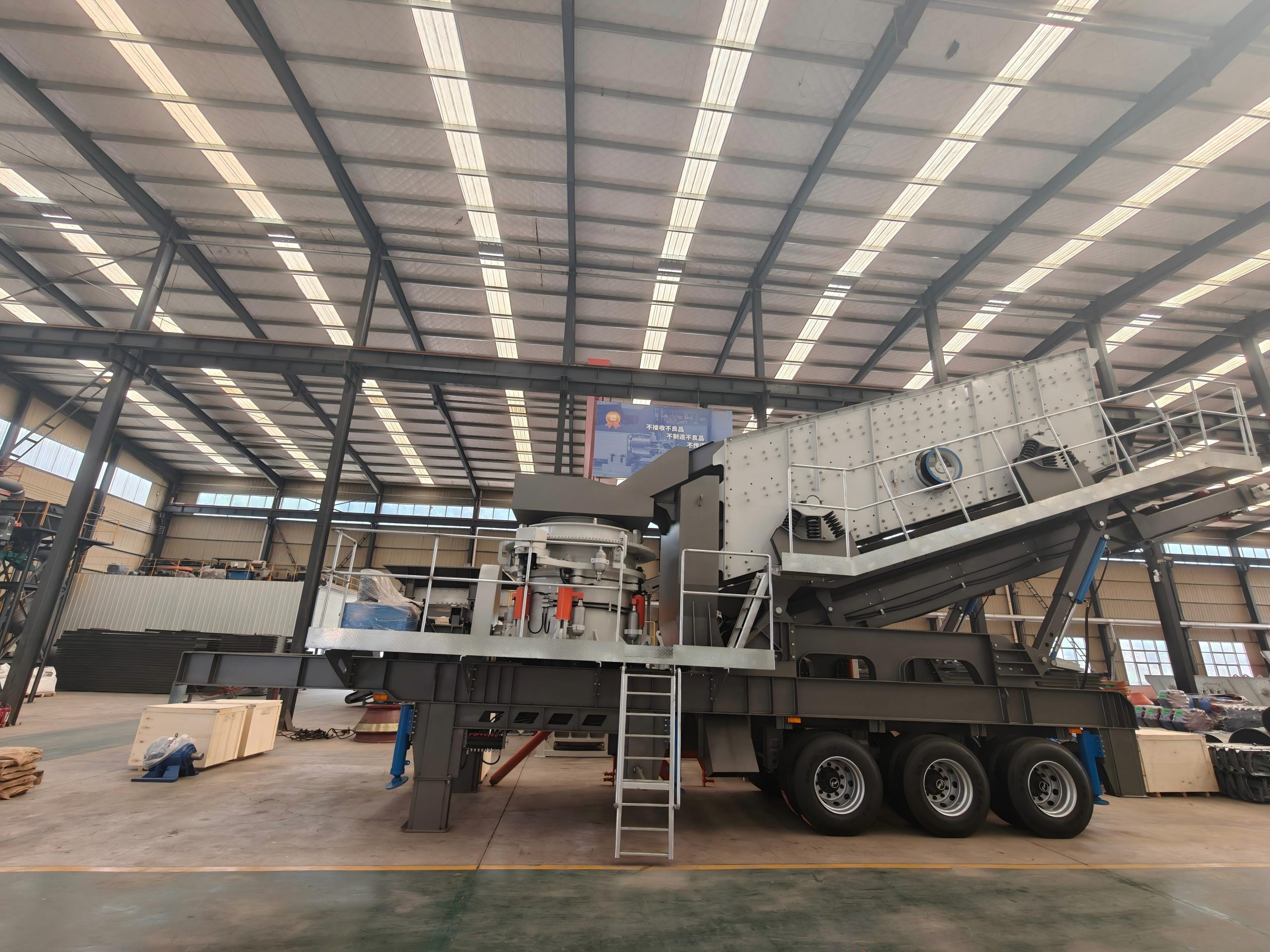

Mobile cone Crusher

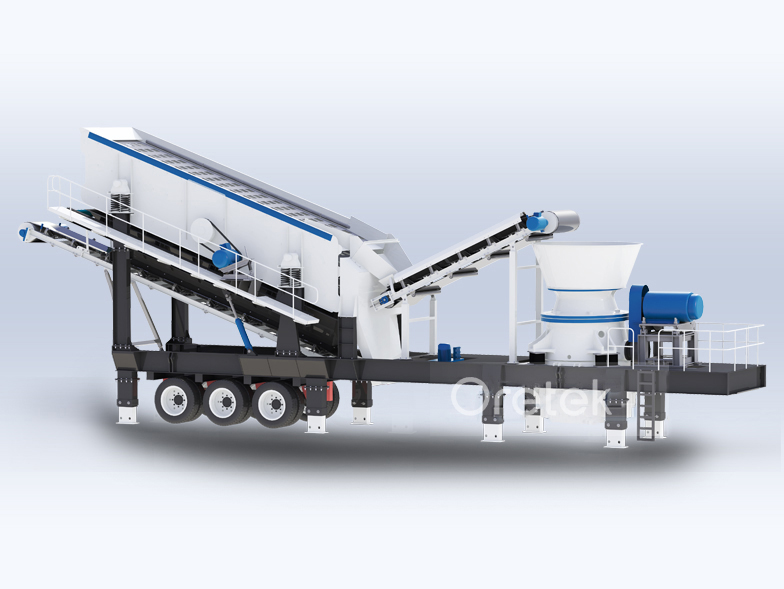

Cone type tire mobile crushing station

Cone type tire mobile crushing station is one kind of high efficiency rock crushing and screening equipment by our company develop and produce in combination with advanced technology and experience in domestic and abroad.

Feeding particle size:<200mm
Production capacity:50-430T/H
Scope Of Application:Widely used in road and bridge construction, urban construction, metallurgy, energy and other parts of the crushing, screening and so on
Handling Materials:Limestone, granite, marble, basalt, iron ore, river pebbles, shale, blue stone, coal, cobblestone, construction waste, etc

inquiry now

Leave Message

  • 01
    Answer customer questions professionally
  • 02
    Combined with the actual configuration plan
  • 03
    Regular return visit and testing
Get the production plan for free

Product Introduction

Cone type tire mobile crushing station is one kind of high efficiency rock crushing and screening equipment by our company develop and produce in combination with advanced technology and experience in domestic and abroad. This kind of mobile station main using in secondary and tertiary crushing and screening. The main equipment adopt high performance and high capacity CS high efficiency cone crusher, DG single hydraulic cone crusher, HPS multi-cylinder hydraulic cone crusher and so on. The equipment modular design, ideal equipment combination, high efficiency and low cost operation, crushing site, environment, transportation, energy and so on as the first solution to provide customers with better crushing process solutions. With high mobility, high reliability, beautiful shape and other characteristics, to reach the advanced level of mobile crushing station.

Performance advantages


Upgraded hydraulic configuration of the screening system and flexible switch between working mode and transportation mode The hydraulic and mechanical support ensures the stability of the mobile station during operation, and the hydraulic lifting device can switch the modes between working and transportation.


Configure Multiple crushing equipment In the selection of cone crusher, we provide a variety of configurations, and users can choose flexibly according to investment plans and project conditions. The inter-particle crushing method brings excellent cubic particle shape and low powder content.


Vehicle-mounted and high-performance transportation In different model configurations, the vehicle-mounted high-performance belt conveyor is integrated, which greatly improves the convenience of operation and the flexibility of transition.


Unit integration The integration of crushing and screening is convenient and simple; it can be operated directly, eliminating the cumbersome equipment foundation construction thus saving cost and time.


Multiple electric control system The electric control cabinet can be integrated in the vehicle body or independently in the control room, and a PLC intelligent console can be optional.


Compact ship design for frame chassis Adopt compact ship design for frame chassis, the transportation length is shortened effectively, the flexible parking function is designed, which can save more time for the quick arrival site.

Technical Parameters



MJ-CS75 MJ-CS160 MJ-H200 MJ-H300 MJ-8010

Combined mobile station)

Transport size(L*W*H)


14000×3100×4300 16000×3100×4500 16000×3100×4500 16000×3200×4500 15000×3200×4500
Max size(L*W*H)



14000×3400×4700 16400×3400×4700 16400×3400×4700 17900×4100×6800 18800×10500×7050
Weight(T) 34.5 49.5 41 50 49
Configuration of tires double axles triaxial triaxial triaxial triaxial
Capacity(t/h) 50-100 100-240 100-300 100-320 50-100
Crusher model CS75 CS160 HP200




Discharging belt conveyor B650*7M B800*7.5M B800*7.5M



(Main belt)

1Return belt conveyor1 B650*9.5M B800*9.5M B800*9.5M



(Belt on screen)

Belt conveyor under screen1 B650*5M B800*6M B800*6M



(Belt on screen)

Belt conveyor under screen2 B800*6M B800*7M B800*7M



(Side exit belt)

screen model 3YZS1848 3YZS1860 3YZS1860

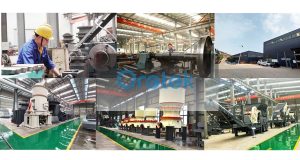

Cone type tire mobile crushing Station factory

Our company is a professional manufacturer of crushing equipment. The company’s senior engineers tailor-made for each customer, scientifically select equipment and do not rework, to ensure that the equipment selected for customers is reasonable and affordable, with stable operation and high efficiency.

Free customized professional and reasonable solution

Oretek provides you with a full set of mine equipment and services. If you are interested in our company and products, you are welcome to come to the factory to inspect. We will arrange for you to visit the crushing site to intuitively experience the quality of the high quality product!
