P6S Impact crusher

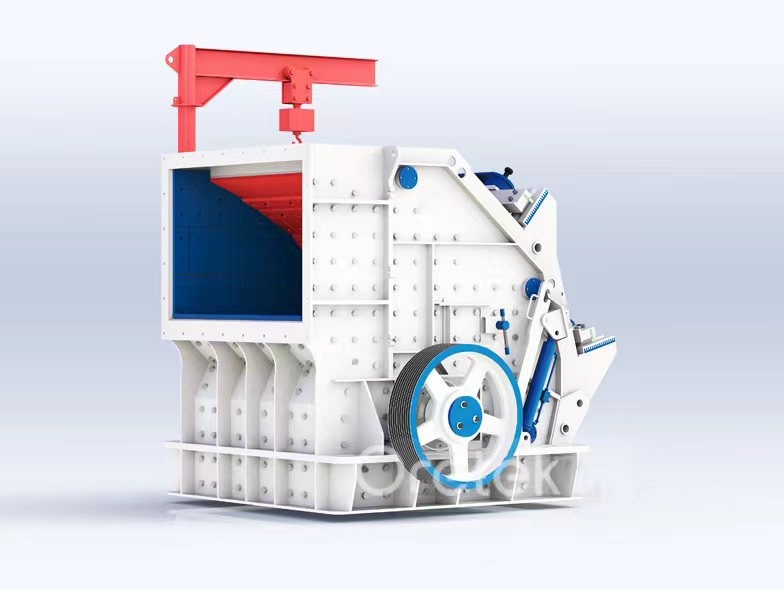

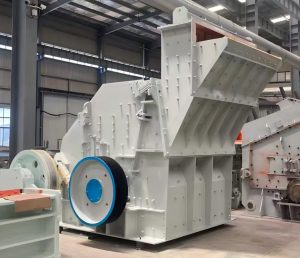

P6S high-strength hydraulic impact crusher

P6S Series high-strength hydraulic impact crusher adopts international advanced technology, which takes strong advantages in crushing ratio, safety, operation, unit energy consumption...

Feeding particle size:≤600mm
Production capacity:100-700T/H
Scope Of Application:Application fields: Various ore crushing, railways, highways, energy, cement, chemical, construction industries
Handling Materials:Applicable materials:various minerals with soft and middle hardness; such as limestone, granite, marble, blue stone, coal, cobblestone, construction waste, etc

inquiry now

Leave Message

  • 01
    Answer customer questions professionally
  • 02
    Combined with the actual configuration plan
  • 03
    Regular return visit and testing
Get the production plan for free

Product Introduction:

P6S Series high-strength hydraulic impact crusher adopts international advanced technology, which takes strong advantages in crushing ratio, safety, operation, unit energy consumption… By adjusting the special device, it can be freely converted between primary crushing and secondary crushing to meet the different requirements from clients. Over the examination of years and years, we found out such impact crusher has incomparable performance in construction waste processing.

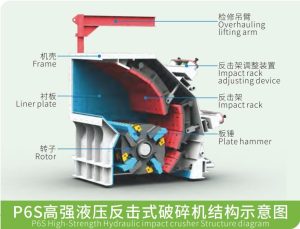

Working principle

Performance advantages:


The design of open-able crushing chamber, hydraulic hoisting device and maintenance hang bracket makes it easier to replace wearing parts like hammers, reducing maintenance shutdown period, thus bring cost reduction.


The output size can be changed quickly by hydraulic adjusting device to adjust the gap between impact rack and plate hammer. This design would save the maintenance time. It is easy and convenient even for a few experienced operator.


Adopting the design of heavy-duty bearing, Integral cast steel bearing seat, and increased radial force. It shows excellent performance in water proof and dust proof, The service life of bearing was prolonged.


Adopting heavy-duty rotor design, which enable its owns greater rotatory inertia. That means, with the same rotate speed, it has stronger crushing force, high efficiency.


Adopting wedge block to fix the plate hammer, it is faster to replace the plate hammer and the solidity is greatly enhanced.


Arc shaped plate hammer guaranteed vertical striking between stone and impact bracket, Which brings high crushing efficiency and reducing the capacity decline caused by worn impact hammer.


The lever of the impact frame adjustment device is marked with a scale, which can easily grasp the distance between the plate hammer and the impact frame.


The design of constant tension device maintains constant counter force, decrease the power consumption.


Technical parameter

Model Output size range (mm) Max. Feeding size(mm) Capacity





Overall Dimension


P6S1010 20-100 400 100-200 90-110 2800×1925×2305
P6S1210 20-100 450 140-285 110-160 2871×1967×2600
P6S1214 20-100 550 200-300 160-200 2871×2307×2600
P6S1315 20-200 600 250-350 200-250 3166×2580×2721
P6S1317 20-200 600 250-400 200-315 3175×2781×2660
P6S1420 20-200 900 300-500 315-355 3582×3205×3118
P6S1520 20-200 900 400-600 400-500 3857×3629×3440
P6S1620 20-200 1200 450-700 400-500 4056×3395×3356

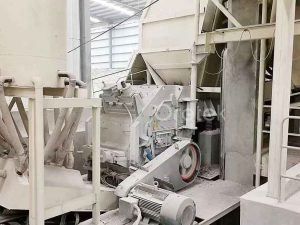

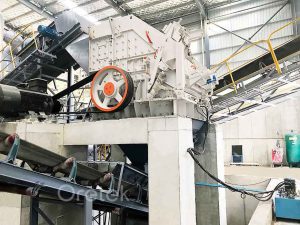

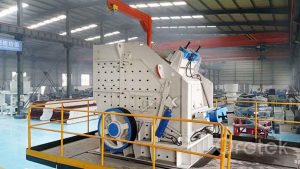

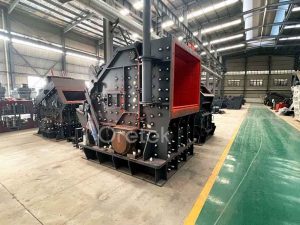

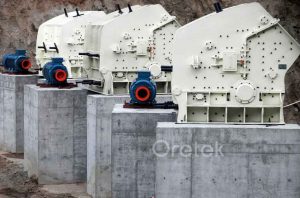

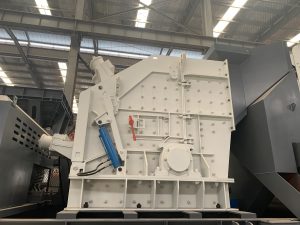

P6S high-strength hydraulic impact crusher Station factory

Our company is a professional manufacturer of crushing equipment. The company’s senior engineers tailor-made for each customer, scientifically select equipment and do not rework, to ensure that the equipment selected for customers is reasonable and affordable, with stable operation and high efficiency.

Free customized professional and reasonable solution

Oretek provides you with a full set of mine equipment and services. If you are interested in our company and products, you are welcome to come to the factory to inspect. We will arrange for you to visit the crushing site to intuitively experience the quality of the high quality product!

Raw material
