Electric single girder crane

Electric single girder crane

(ordinary type, explosion-proof type, metallurgical type optional):

inquiry now

Leave Message

  • 01
    Answer customer questions professionally
  • 02
    Combined with the actual configuration plan
  • 03
    Regular return visit and testing
Get the production plan for free

Product Introduction

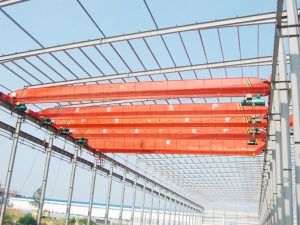

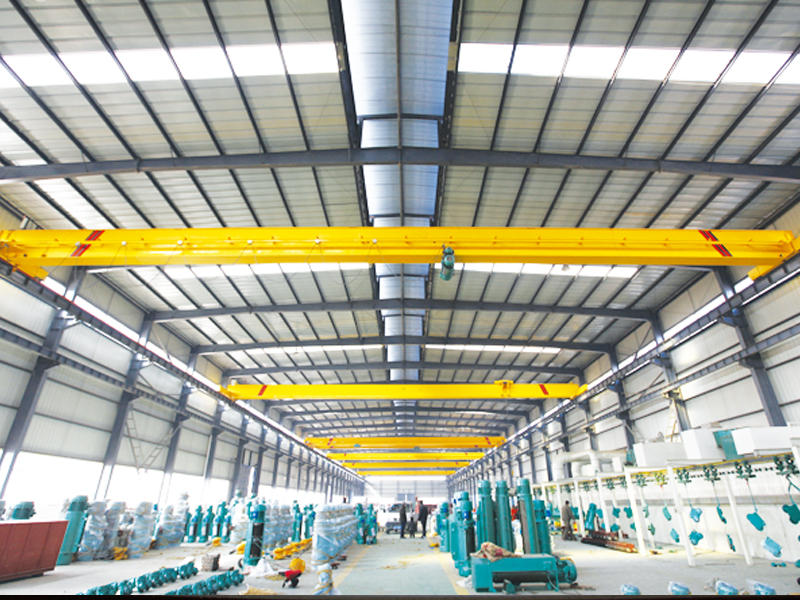

LD electric single-girder crane is composed of main girder welded by steel plate and I-beam, end girder, electric hoist and operating mechanism. The electric hoist runs along the lower flange of the main girder I-beam to finish the lifting work. Lightweight structure, easy installation and maintenance, etc., the lifting capacity range from 1-32t, the applicable span is 7.5m-31.5m, the working temperature is -25℃~+40℃, and the humidity is ≤84%. It is widely used in factories, warehouses, stockyards, etc. Lifting cargo on different occasions. The working level is A3-A5. There are three modes of operation: ground handle, wireless remote control and driver’s cab. There are two types of cabs: open and closed. The running of the cart adopts the form of separate drive, conical motor braking, and open gear transmission.

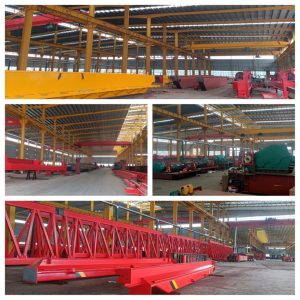

Crane factory

Free customized professional and reasonable solution

Oretek provides you with a full set of mine equipment and services. If you are interested in our company and products, you are welcome to come to the factory to inspect. We will arrange for you to visit the crushing site to intuitively experience the quality of the high quality product!
